特點
優化的結構設計，密閉的打錠區可有效防止交叉汙染的風險，符合FDA&GMP要求
由VME-BUS系統控制，伺服電機調節下料凸輪來控制填料深度，保證精準計量
所有壓輪獨立受力，主壓及預壓輪尺寸相同，每個可提供80千牛頓力
專利設計的整體可更換轉台，可連同導軌和模具一同更換，並可快速完成產品換線
可選配氣動單粒排除，精準排除不良品，有效提高產品收率
符合FDA 21 CFR Part 11要求
技術規格
最多沖頭數量: 32
應用範圍: 單層錠
最大產量: 234,000/小時
機器尺寸: 900 x 1,163 x 1,888 mm
最大產品直徑: 25 mm
機器重量: 約2,000 kg

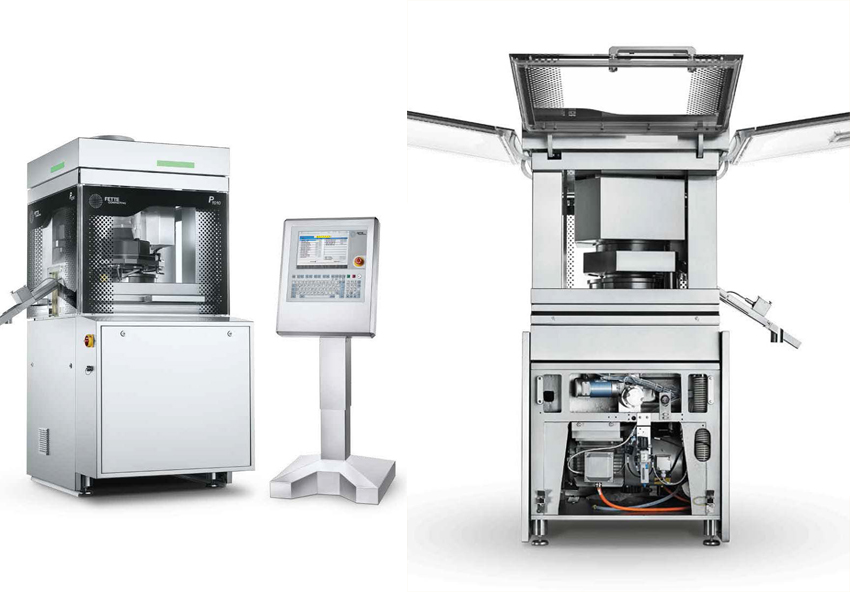

Tablet Press P1010
Compact for small batches
The P1010 tablet press is the compact machine in the P series. It is distinguished by its space-saving design. Easy cleaning and fast turret change make it an excellent choice for your serial production.
Highlights
System integration of deduster and in process control
Equipped with advanced VME-bus control system and top class electrical parts, faster and more stable
Metering wheels can increase powder flowability and uniform density. Filling wheels and dosing wheels can
precisely fill and dose powder
All compression roller are independent mounted, main compression station can offer 80* KN force maximum
Design-patented turrets can be interchanged with cams and tools. Optional air sorting system, reject single
tablet precisely, reduce the product loss
Support FDA 21 CFR Part 11
Technical Data
Max. station: 32
Application scope: Single tablet
Max. tablet output: 234,000/h
Dimensions: 900 x 1,163 x 1,888 mm
Max. tablet sizes: 25 mm
Weight: approx. 2,000 kg
特點
F30p 是 Fette Compacting 的新型雙出口打錠機，適合大批量生產，最高每小時可製造 113 萬顆藥錠，F30p 採用先進的除塵系統，減少產品損失，並設計為便於清潔和維護。該設備支持數位整合，提供實時數據訪問和監控。此外，F30p 節能技術可節約多達 40% 的能源，結構堅固，維護需求低，並具備靈活性和適應性，可快速適應各種產品需求。
技術規格
模具規格: EU19/FS19, BBS
站位: 79
最高產能: 1,137600 錠/小時
適用產品: 單層錠、雙層錠
最大主壓力: 100kN

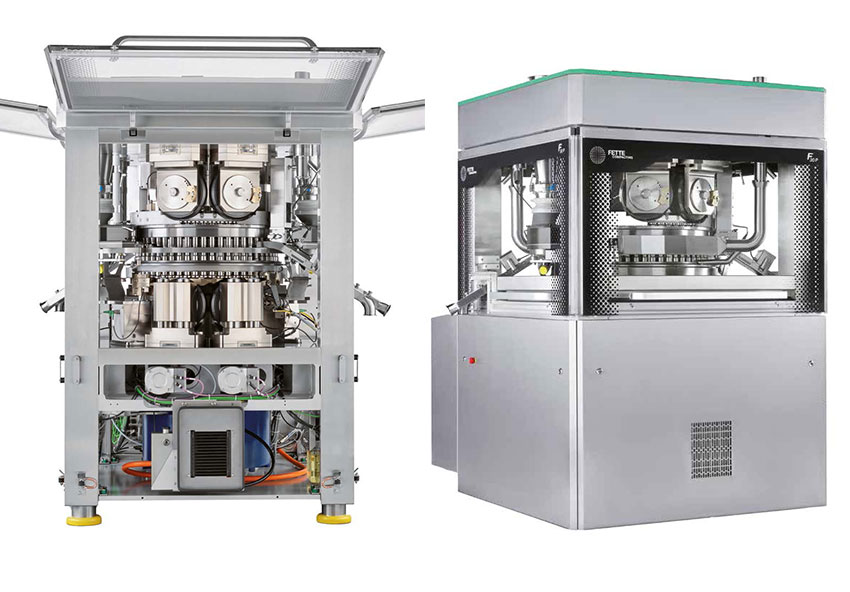

Tablet Press F30p
Highlights
The F30p is a high-performance double rotary tablet press from Fette Compacting, designed to handle large-scale production with a maximum output of up to 1.13 million tablets per hour. It features an advanced dust extraction system, reducing product loss, and a user-friendly design that simplifies cleaning and maintenance. The F30p also supports digital integration with MES and IoT systems for real-time monitoring and data access, making it a versatile and efficient solution for modern tablet production lines
Technical Data
Punch type: EU19/FS19, BBS
Station: 79
Max. Output: 1,137,600 tab/hr
Product: Single/Double-Layer Tablet
Max Main Compression Force: 100kN
